KB19

NCM177Ah 1P4S VDA Module

  • 355 VDA frame welding battery module and conform with the German Association of Automotive Industry standard.

  • Meeting quality and design requirements for passenger cars, especially in vibration and thermal runway.

  • Uninterrupted supply guaranteed by the stable mass production.

  • Continuously improved energy density though nickle proportion promoting and light weighting technology.

  • Mainstream NCM products applied for passenger vehicles and commercial vehicles etcetera.

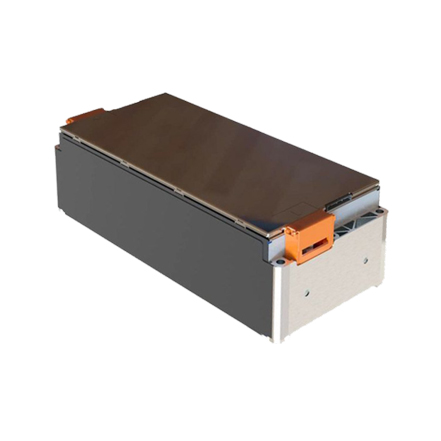

ncm 177ah 1p4s vda module 2

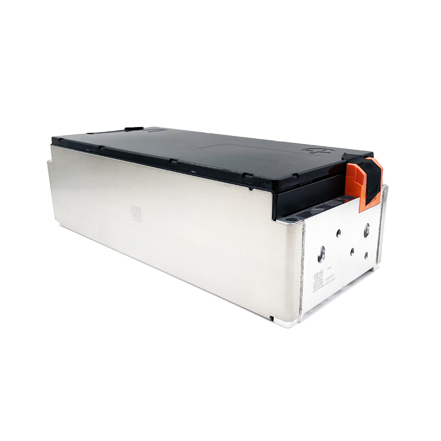

ncm 177ah 1p4s vda module 1

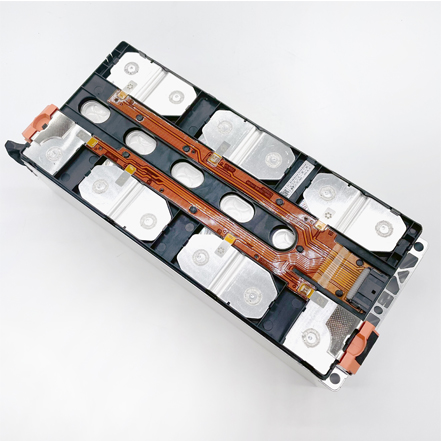

ncm 177ah 1p4s vda module 3

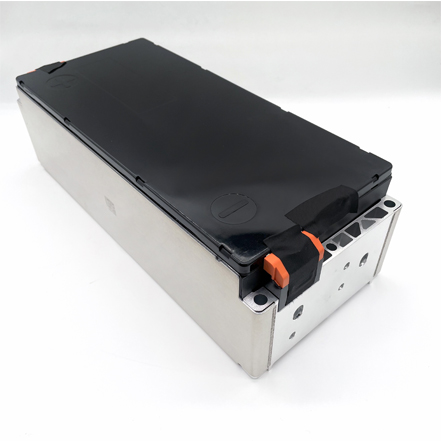

ncm 177ah 1p4s vda module 4
ncm 177ah 1p4s vda module 2
ncm 177ah 1p4s vda module 1
ncm 177ah 1p4s vda module 3
ncm 177ah 1p4s vda module 4

Technical Datas of NCM177Ah 1P4S VDA Module


No.

Items

Specification

Note

1

Nominal voltage(V)

14.64


2

Operating voltage(V)

min

11.2

T: 25±3℃

3

max

17.4

T: 25±3℃

4

Nominal capacity(Ah)

177

1/3C,100%DOD

5

Nominal energy(KWh )

2.591

1/3C,100%DOD

7

Group mode

1P4S


8

Module weight(kg)

11.9


9

Maximum continuous charge current(A)

211.3


10

Maximum continuous discharge current(A)

348


11

Maximum pulse charge current(A)

310

@10S,SOC≤70%

12

Maximum pulse discharge current(A)

465

@10S,SOC≥30%

14

SOC operating range(%)

10~90


15

Module cooling method

Natural cooling


16

Module heating method

No

Or heating film

17

Temperature detector qty.

2


18

Shipping capacity (SOC)

50%±5

SOC is consistency in the same batch

19

Temp. Condition(℃)

Charge

-20~55


Discharge

-30~55


Storage

-30~55


20

Dimension L (mm)

355


21

Dimension W(mm)

152


22

Dimension H(mm)

108.5


23

Relevant product standard

GB/T 31484—2015

GB/T 31485—2015

GB/T 31486—2015

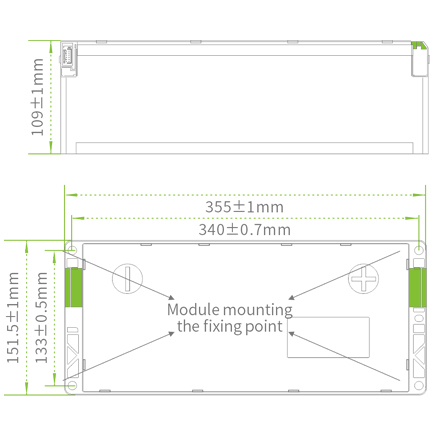

Dimensions of NCM177Ah 1P4S VDA Module

DRAWING
DRAWING

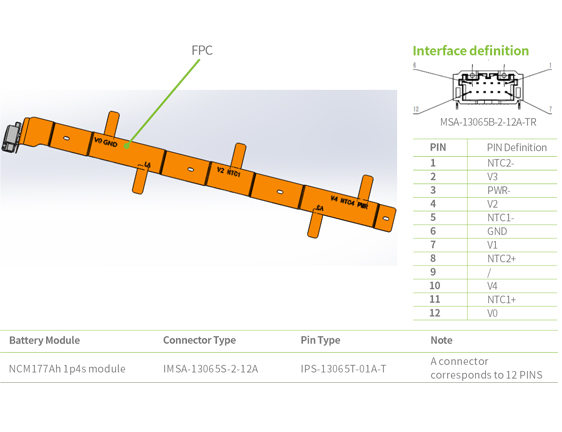

INTERFACE TYPE
INTERFACE TYPE
