KB19

NCM177Ah Battery

  • Conform VDA 79148 series of cell format

  • The basic lithium ion battery cells to produce NCM177AH-1P4S VDA 355module

  • NCM 523 with outstanding energy density appropriately 240Wh/kg

  • 2500times cycle life with maximum reliability.

  • Continuously improved energy density though nickle proportion promoting and light weighting technology.

  • Suitable for passenger vehicles and vehicles with limited space etcetera.


ncm 177ah battery 1

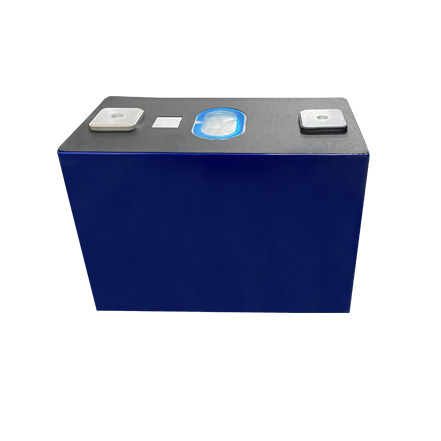

ncm 177ah battery 2
ncm 177ah battery 3
ncm 177ah battery 1
ncm 177ah battery 2
ncm 177ah battery 3

Technical Datas of NCM177Ah Battery


No.

Item

Specification

Note

1

Rated Capacity

177Ah

@1/3C

2

Nominal Voltage

3.73V

@1/3C

3

Actual Voltage Range

2.8-4.35V


4

Constant Discharge Current

≤348A

2C@10min

5

Peak Discharge Current

≤500A

@30s

6

Constant Charge Current

≤210A

1.2C

7

Peak Charge Current

≤348A

2C@10s

8

Operating Temperature

Charge: -20℃~55℃
Discharge: -30℃~55℃


9

Storage Temperature

-30℃~55℃


10

Cell Dimensions

Thickness:79.22±0.3mm

Length:148.44±0.3mm

Height: 102.77±0.3mm


11

Cathode Material

NCM 523


12

Weight

2.70±0.1kg


13

Energy density

240Wh/kg (1/3C )

550Wh/L (1/3C)


14

Cycle life

≥2500 times

@0.5C/0.5C 100%DOD,75%EOL

15

Terminal

Welding/Nut terminal

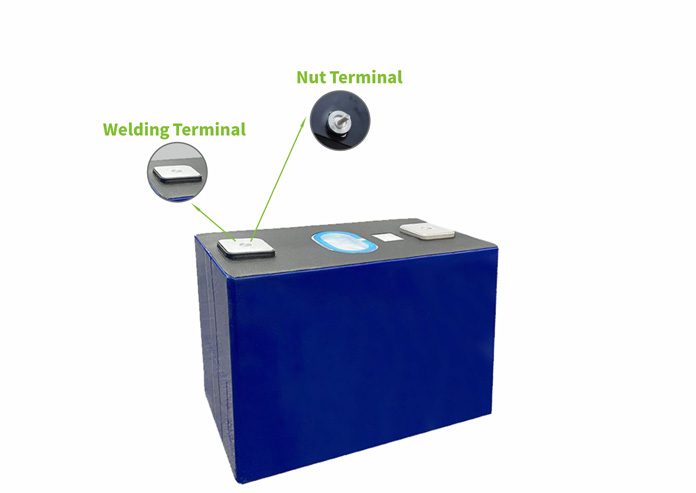

Terminals Option of NCM177Ah Battery

Terminals Option of NCM177Ah Battery

Dimensions of NCM177Ah Battery

DRAWING
DRAWING
NUT TERMINAL
NUT TERMINAL

Certifications of Lithium Battery

Certifications of Lithium Battery
