KB19

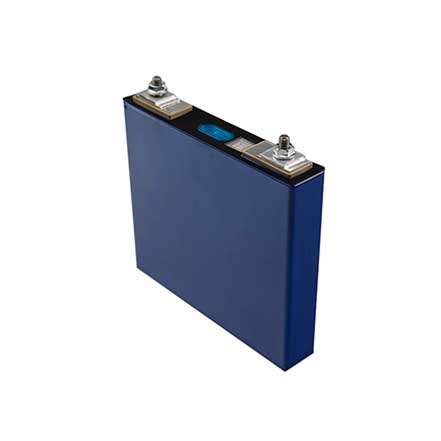

LiFePO4 40Ah Battery

LiFePO4 40Ah Battery belongs to high current rate LFP cells.


  • Excellnet current rate performance: support 6C continous charge and continous discharge

  • Energy density: 120Wh/kg

  • Long cycle life: ≥5000times

  • Conform VDA 148 width dimension

  • Application: AGV, motorcycles, projects what need high current rate performance

lifepo4 40ah battery
lifepo4 40ah battery
lifepo4 40ah battery
lifepo4 40ah battery
lifepo4 40ah battery
lifepo4 40ah battery
lifepo4 40ah battery
lifepo4 40ah battery
lifepo4 40ah battery
lifepo4 40ah battery
lifepo4 40ah battery
lifepo4 40ah battery

Technical Datas of LiFePO4 40Ah Battery


No.

Item

Specification

Note

1

Rated Capacity

40Ah

@1C

2

Nominal Voltage

3.2V


3

Actual Voltage Range

2.5-3.65V


4

Rated Discharge Current

≤240A

6C

5

Peak Discharge Current

≤400A

@30s

6

Rated Charge Current

≤240A

6C

7

Peak Charge Current

≤400A

@30s

8

Operating Temperature

Charge: 0℃~55℃
Discharge: -20℃~60℃


9

Storage Temperature

﹣20℃~55℃


10

Cell Dimensions

Thickness: 27.5±0.1mm
Length: 148.0±0.3mm
Height: 129.4±0.5mm


11

Cathode Material

LFP


12

Weight

1.06±0.2kg


13

Energy density

120Wh/kg


14

Cycle life

≥5000 times

@0.5C/1C 100%DOD

15

Terminal

Welding/Screw terminal-Nut



Terminals Option of LiFePO4 40Ah Battery

Terminals Option of LiFePO4 40Ah Battery

Dimensions of LiFePO4 40Ah Battery

NUT TERMINAL
NUT TERMINAL

Certifications of Lithium Battery

Certifications of Lithium Battery
