KB19

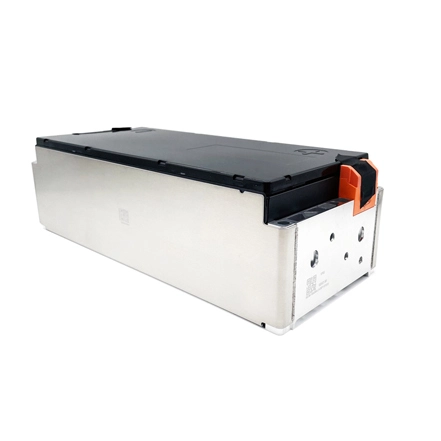

LFP135Ah 1P4S VDA MODULE

  • 355 VDA frame welding lithium battery module.

  • High-quality standard of production and performance meeting supply requirements of passenger vehicles.

  • Uninterrupted supply is guaranteed by stable mass production.

  • Suitable for passenger vehicles and commercial vehicles etcetera.

LFP135Ah 1P4S VDA MODULE
LFP135Ah 1P4S VDA MODULE
LFP135Ah 1P4S VDA MODULE
LFP135Ah 1P4S VDA MODULE
LFP135Ah 1P4S VDA MODULE
LFP135Ah 1P4S VDA MODULE

Technical Datas of LFP135Ah 1P4S VDA MODULE


No.

Items

Specification

Note

1

Nominal voltage(V)

12.88


2

Operating voltage(V)

min

10


3

max

14.6


4

Nominal capacity(Ah)

135

25°C

5

Nominal energy(KWh )

1.739

25°C

7

Group mode

1P4S


8

End of life residual capacity (Ah)

108


9

Module weight(kg)

11.6


10

Maximum continuous charge current(A)

135


11

Maximum continuous discharge current(A)

135


12

Maximum pulse discharge current(≤10s)(A)

270


13

SOC operating range(%)

10~90


14

Insulation requirements(MΩ)

≥20

500V DC,High voltage output to battery module shell, at the normal temperature and humidity

15

Module cooling method

Natural cooling


16

Module heating method

NO


17

Shipping capacity (SOC)

≈30%

SOC is consistency in the same batch

18

Dimension L (mm)

355


Dimension W (mm)

151.5

Dimension H (mm)

109


Dimensions of LFP135Ah 1P4S VDA MODULE

DRAWING
DRAWING
INTERFACE TYPE
INTERFACE TYPE
