KB19

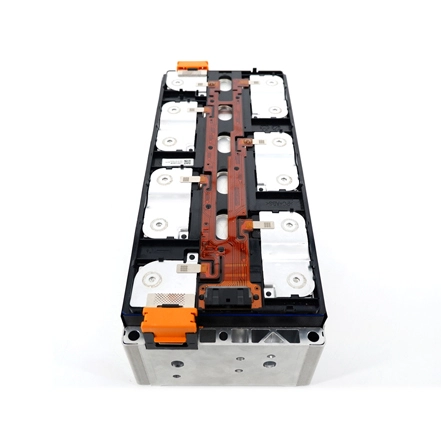

NCM114Ah 1P6S VDA MODULE

  • 355 VDA frame welding lithium battery module.

  • High-quality standard of production and performance meeting supply requirements of passenger vehicles.

  • Uninterrupted supply is guaranteed by stable mass production.

  • Continuously improved energy density through nickle proportion promoting and light weighting technology.

  • Suitable for passenger vehicles and commercial vehicles etcetera.

NCM114Ah 1P6S VDA MODULE
NCM114Ah 1P6S VDA MODULE
NCM114Ah 1P6S VDA MODULE
NCM114Ah 1P6S VDA MODULE
NCM114Ah 1P6S VDA MODULE
NCM114Ah 1P6S VDA MODULE

Technical Datas of NCM114Ah 1P6S VDA MODULE


No.

Items

STANDARD

MODULE

NCM 114AH1P6S

Note

1

Nominal voltage(V)

22.44

@1/3C,22.08@1C

2

Operating voltage(V)

min

16.8


3

max

26.4


4

Nominal capacity(Ah)

114

@1/3C,25°C,100%DOD

5

Nominal energy(KWh )

2.558

@1/3C,25°C,100%DOD

7

Group mode

1P6S


8

End of life residual capacity (Ah)

91.2

@1/3C,25°C,100%DOD

9

Module weight(kg)

12.1±0.3


10

Maximum continuous charge current(A)

114


11

Maximum continuous discharge current(A)

114


12

Maximum pulse discharge current(≤10s)(A)

342


13

SOC operating range(%)

0-97


14

Insulation requirements(MΩ)

≥500


15

Module cooling method

Natural cooling


16

Module heating method

NO


17

Shipping capacity (SOC)

30%

SOC is consistency in the same batch

18

Dimension L (mm)

355


Dimension W (mm)

151.5

Dimension H (mm)

108.5

Dimensions of NCM114Ah 1P6S VDA MODULE

DRAWING
DRAWING
INTERFACE TYPE
INTERFACE TYPE
