KB19

Liquid-cooling Commercial&Industrial ESS

Energy supply cabinet series of products are energy storage system designed specially for industrial and commercial scenarios like factories, parks, commercial buildings, charging stations, and data centers.This series of product mainly consists of battery packs, PCS , thermal management systems (TMSs), fire fighting system (FFS), and battery management system (BMS). The functions such as energy expansion, energy arbitrage and solar integration can be realized via energy control strategy setting of our energy management system.


liquid cooling commercial industrial ess 01
liquid cooling commercial industrial ess 04

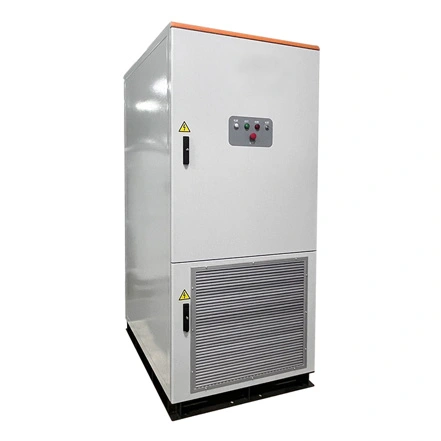

liquid cooling commercial industrial ess 03
liquid cooling commercial industrial ess 02
liquid cooling commercial industrial ess 01
liquid cooling commercial industrial ess 04
liquid cooling commercial industrial ess 03
liquid cooling commercial industrial ess 02

Technical Data of Liquid-cooling Commercial&Industrial ESS

Product Model

LS215L-100K-1S240-5P48-280

LS232L-100K-1S260-5P52-280

AC Side

Rated Power

100kW

100KW

Maximum Output Power

110KW

110KW

Permissible Grid Voltage

400V(-15%~+10%)

400V(-15%~+10%)

Permissible Gird Frequency

50/60Hz±2.5Hz

50/60Hz±2.5Hz

Rated Input Current

158A

158A

Wiring Configuration

3P4W+PE

3P4W+PE

DC Side

Cell Type

LFP 3.2V/280AH

LFP 3.2V/280Ah

Rated Energy

215.04kWh

232.96KWh

Voltage Range

648-864V

702-936V

Battery Pack Configuration

1P48S/43KWh

1P52S/46.6KWh

Battery System Configuration

1P240S(5*1P48S)

1P260S(5*1P52S)

Energy

215.04kWh

232.96KWh

Highest Efficiency Of The PCS

98%

98%

System Efficiency

>88%

>88%

Charge-discharge Rate

≤0.5C

≤0.5C

System Data

Dimensions (DxWxH)

1000*1350*2391mm(Eyebolts included)

1000*1350*2391mm(Eyebolts included)

1000*1350*2300mm(Eyebolts not included)

1000*1350*2300mm(Eyebolts not included)

Weight

2400kg

2550kg

Noise

<75dB

<75dB

IP Rating

IP54

IP54

Operating Temperature

-20~50℃(>45℃ derating)

-20~50℃(>45℃ derating)

Cooling

Liquid cooling

Liquid cooling

Ambient Humidity

0-95%(non-condensing)

0-95%(non-condensing)

Operating Altitude

2000m(derating if more than 2000m)

2000m(derating if more than 2000m)
