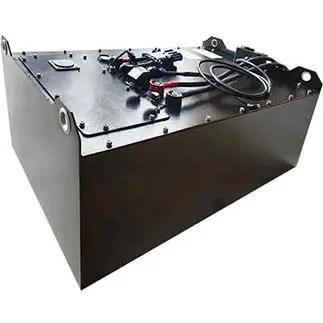

36V Lithium-ion Forklift Battery

Name: 36V Lithium-ion Forklift Battery
Brand: Lithium Storage Co., Ltd.

Get 36V Lithium-ion Forklift Battery Price PDF Download



36V Forklift Battery Technical Datas

No.	Items	Parameter	Note
		38.4V824Ah
		206Ah4P12S
1	Nominal voltage(V)	38.4
2	min	30
3	max	43.8
4	Group mode	206Ah4P12S
5	Nominal energy（KWh ）	31.64	25±2℃
6	Weight（Kg）	≈1180kg	With additional weight
7	Nominal capacity(Ah)	824	25±2℃
8	Maximum continuous charge current（A）	300	25±2℃
9	Maximum continuous discharge current（A）	300	25±2℃
10	Maximum pulse discharge current（≤5s）（A）	750	25±2℃
11	Shipping consistency（mv）	30	Voltage difference between cell ＜30mV
12	Charging port	REMA640A（female）	customizable
13	Discharging port	SB350	customizable
14	GPRS communication	4G	optional
15	SOC operating range（%）	20~100
16	Insulation requirements(MΩ)	≥20	500V DC，High voltage output to battery shell, at the normal temperature and humidity
17	cooling method	Natural cooling
18	Shipping capacity	≈30%	SOC is consistency in the same batch
19	Dimension L (mm)	960	For Crown RMD6095S-32 400 with additional weight
	Dimension W (mm)	510
	Dimension H (mm)	760
20	Charger	Optional
